Reliable and Effective Filtration Systems

Robson Industries Inc. Filter Skids can be used for a variety of industrial applications, including:

• Water Soluble Coolants
• Quench Oils
• Lubricating Oils
• Hydraulic Oils
• Machine Tool Coolant
• CNC Machining Centers
• Conventional EDM
• Oil Coalescing Filtration

The standard design of the filters utilize standard filter cartridges available from multiple sources including McMaster-Carr.  This allows our customers the benefits of multiple suppliers and stocking locations, without being tied in to a "special" filter design.  Adapters are available to accommodate any filter media you may want to use.

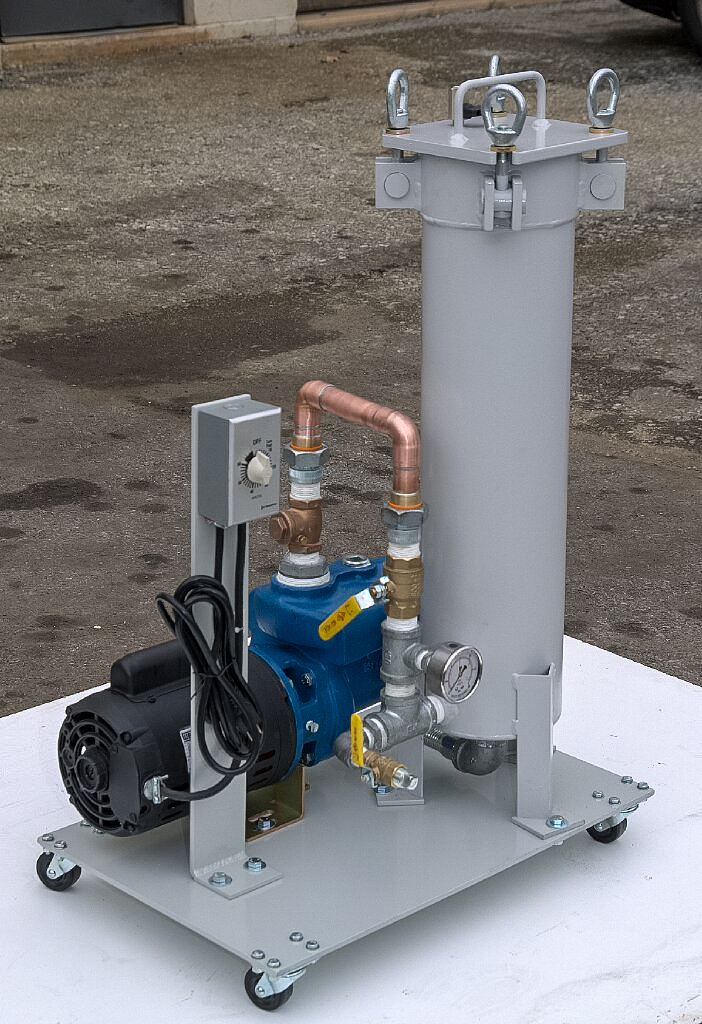

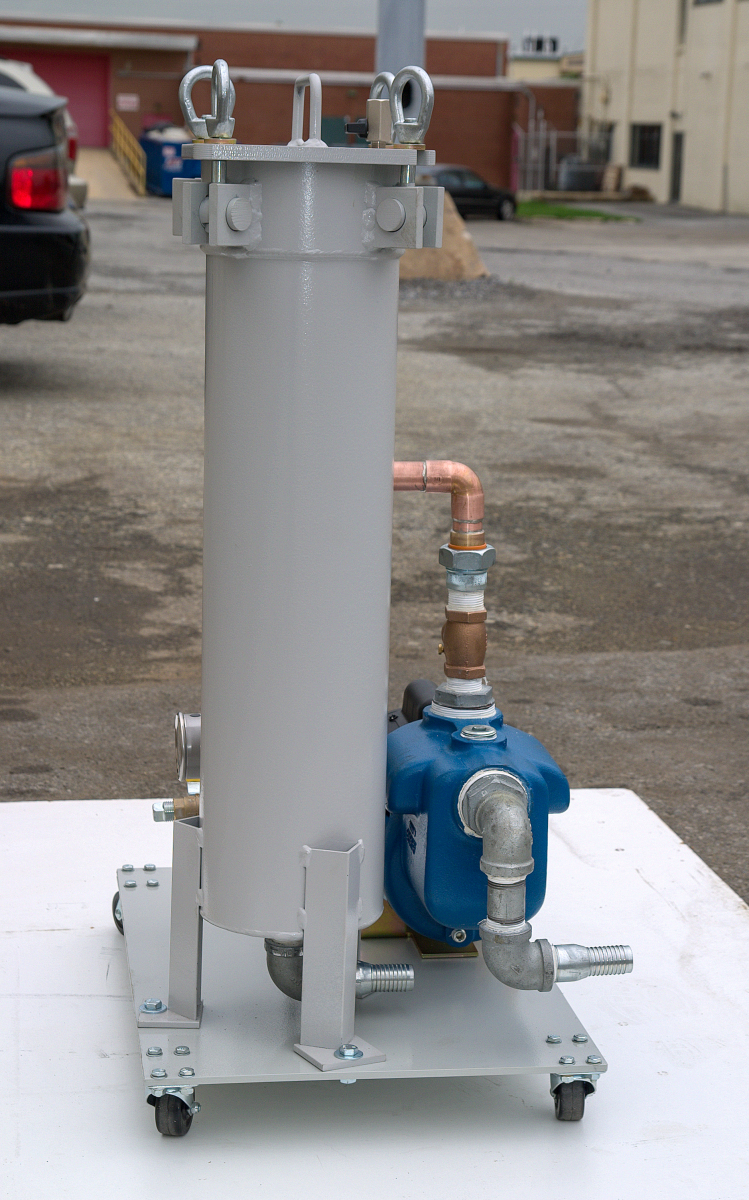

Robson Industries Inc. Single Cartridge Filter Skid Model FS-1-1:

• Extremely Small Footprint: 16" x 24"
• Low Profile Casters Allow Filter To Move With Reservoir
• Holds (1) Standard Filter Cartridge 6" OD x 18" Long
• Epoxy Coated Steel and Base

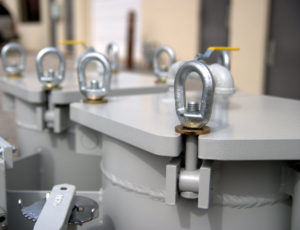

• Single Cartridge Filter Vessel With Convenient Eye Nuts and Swing Bolts
• Cast Iron Self Priming Pump
• Liquid Filled Pressure Gauge
• "On-Off" Switch With 60 Minute Timer Function
• 1 HP Motor, 120V/1Ph/60Hz
• Includes 8' Power Cord and Plugs Into A Standard Outlet
• Shipping Weight: 150#
• In Stock And Ready To Ship
• Filter Media is Stocked by Robson Industries Inc. and Nationwide by McMaster Supply Company
• Click Here To Go To "Buy It Now" Page and for more details

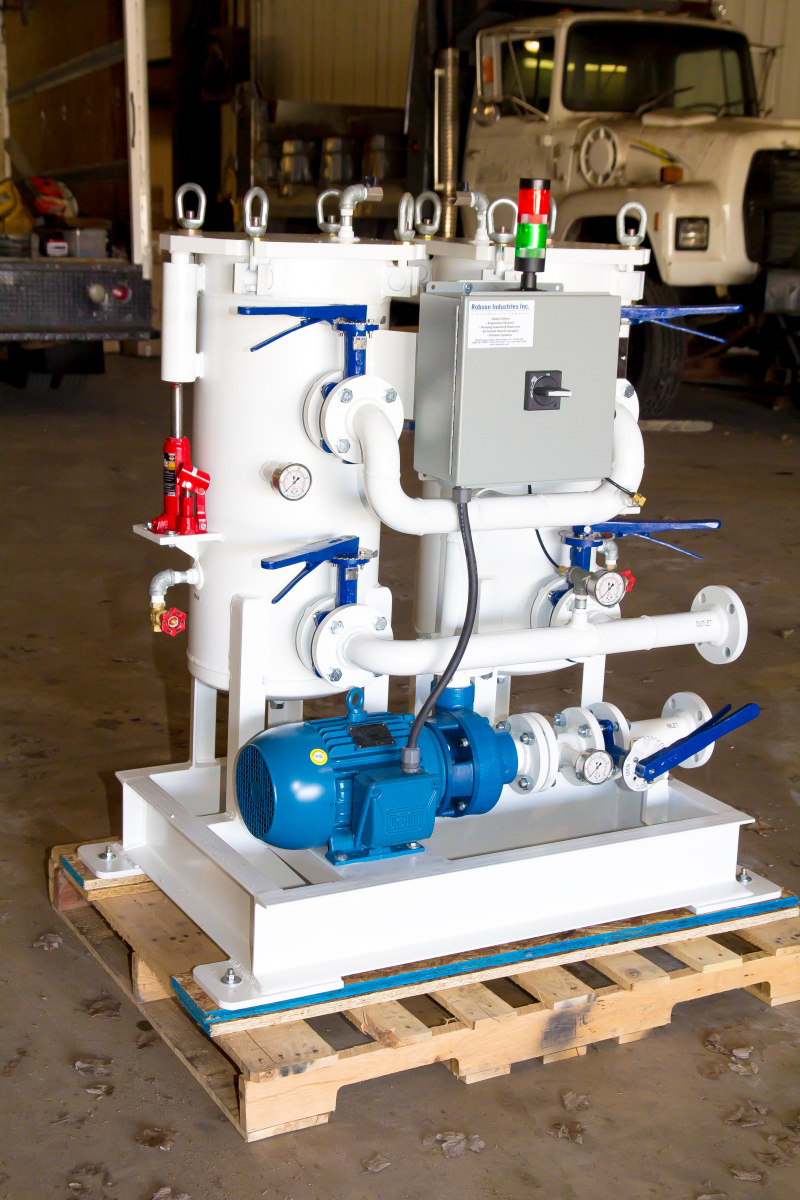

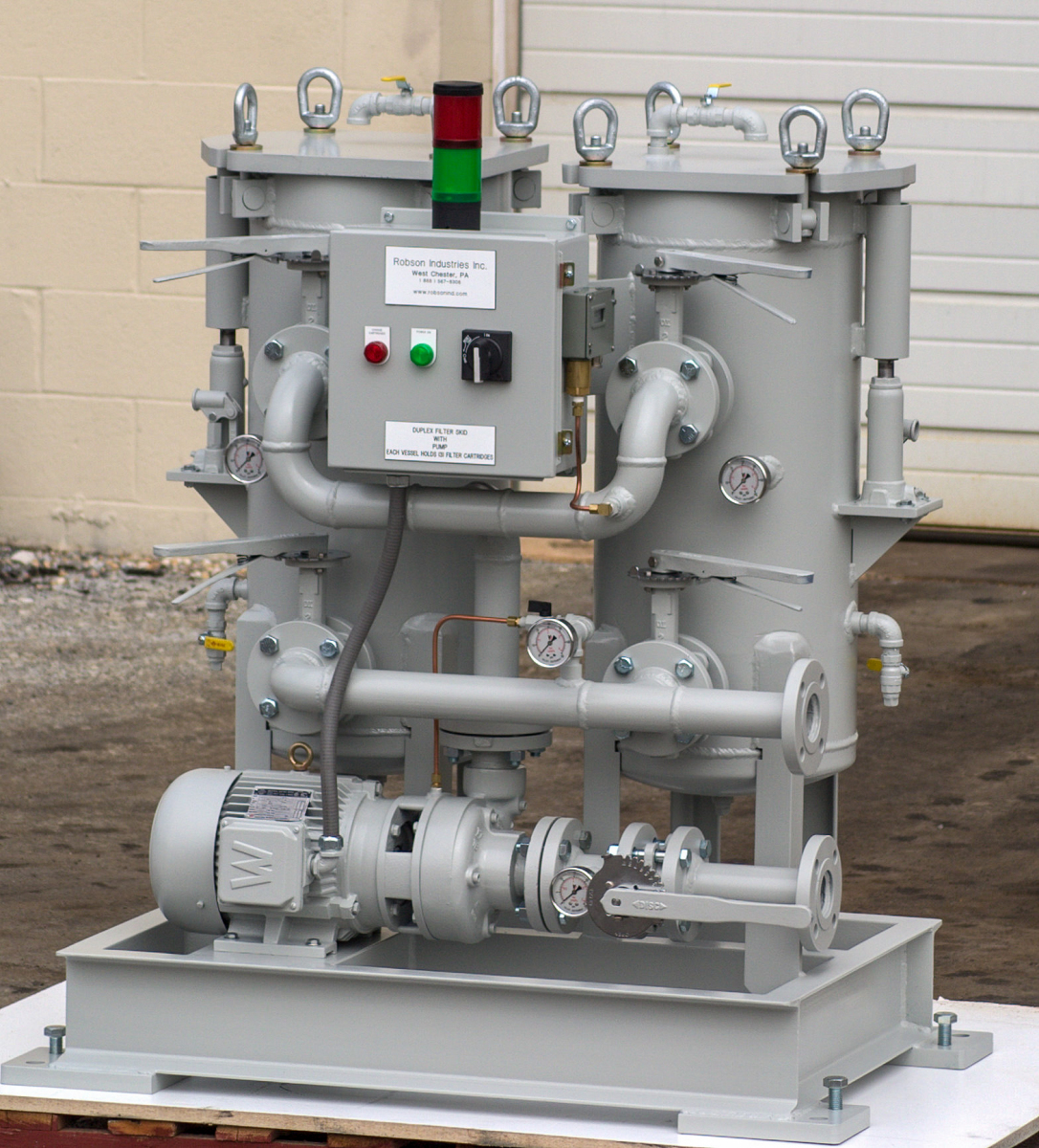

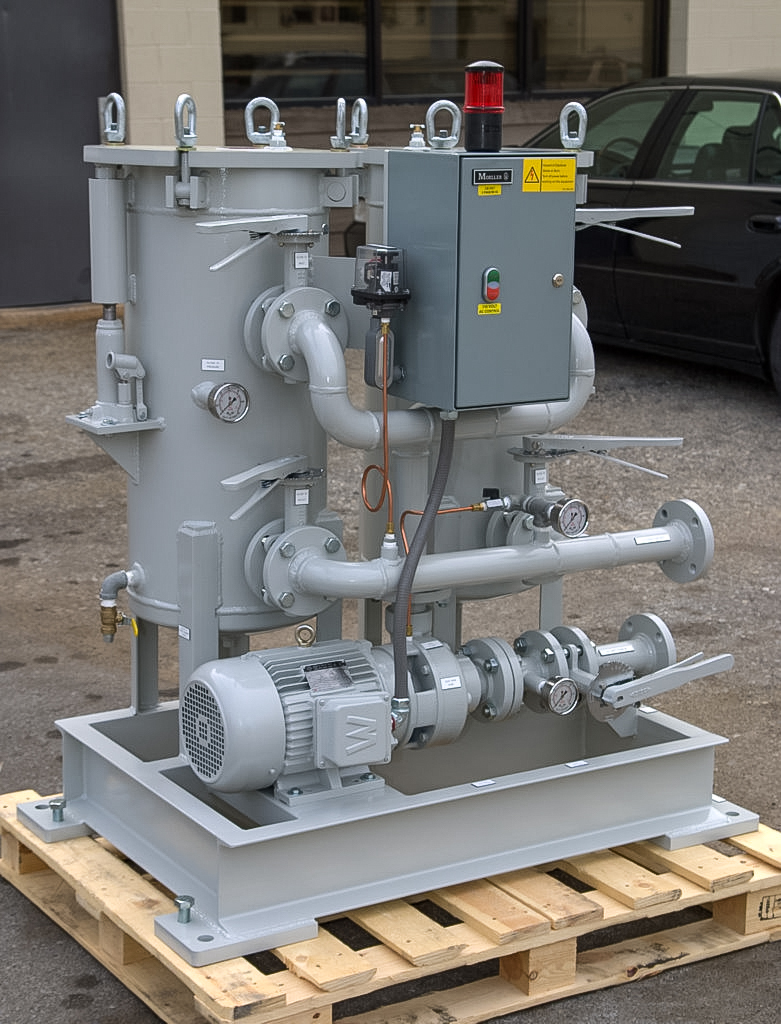

Robson Industries Inc. Duplex Cartridge Filter Skid Unit Model DUP-3-90:

• Compact Design Minimizes Floor Space Requirement
• Duplex Cartridge Filter Vessels Each Hold (3) Standard Cartridges 6" OD x 18" Long
• Heavy Duty Structural Steel Frame With Mounting Pads & Leveler Bolts
• Smooth Action Jack Posts With Hydraulic Lid Lifts
• Reliable Welded Pipe With Butterfly Valves
• Stationary Inlet & Outlet Connections Within Skid Layout
• Cast Iron Pump With High Efficiency 3 HP TEFC Motor
• 90 GPM Nominal Flow Rate
• Standard Cartridges Stocked By McMaster-Carr Supply Company
• Electrical Control Panel With Disconnect Switch
• High Visibility Status Stacklight
• System Alerts User When Cartridges Are Full

The footprint of this unit, only 40" x 28", is as small as possible while maintaining access for proper servicing.

 This system has been designed to survive in a rough industrial environment while being easy to use.  Note the welded steel pipe, flanged connections, butterfly valves, automatic bag fill sensor indicator, hydraulic lid lifts, and multiple pressure gauges, all of which have been added to improve the unit's ease of use.

 Options:

• Custom Configurations To Match Any Existing Cartridge or Filter Bag
• Multiple Power Options Including International Voltages
• Stainless Steel Construction
• Automated Valves For Unattended Filter Vessel Change
• Automatic Backflush
• Sizes To Handle Flow Rates To 2,000 GPM
• Inlet Strainers
